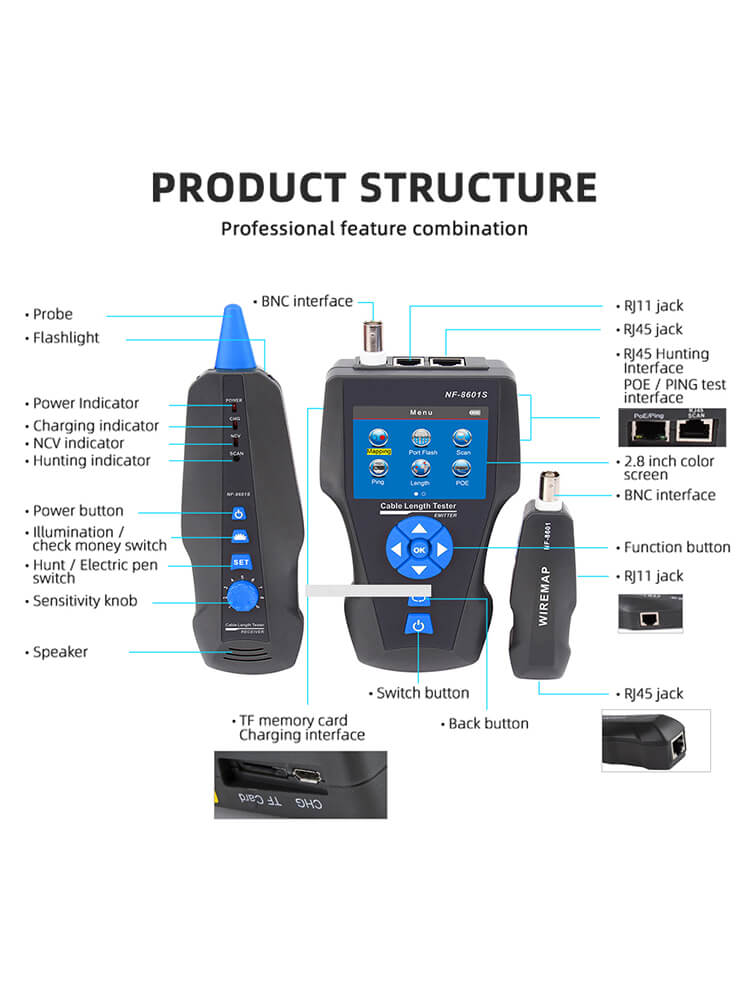

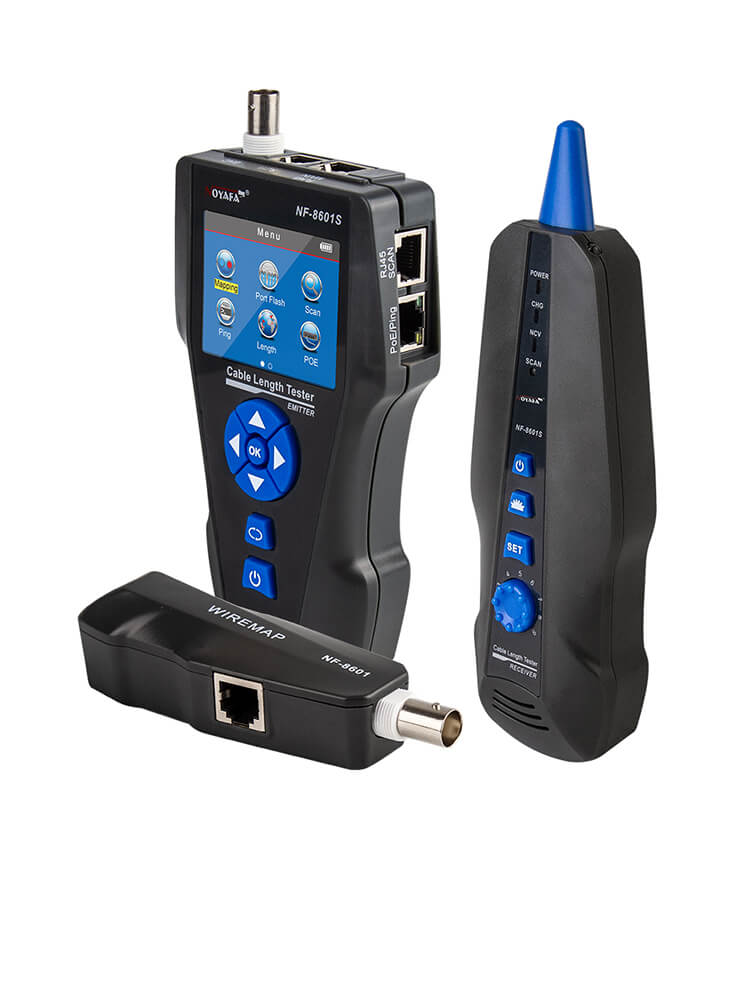

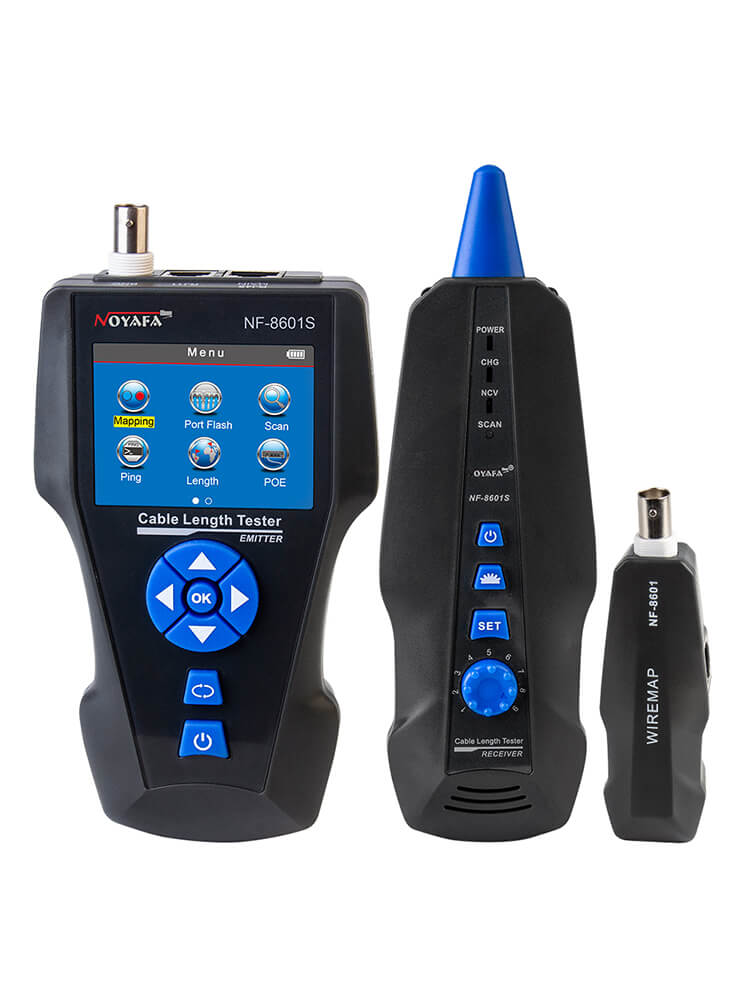

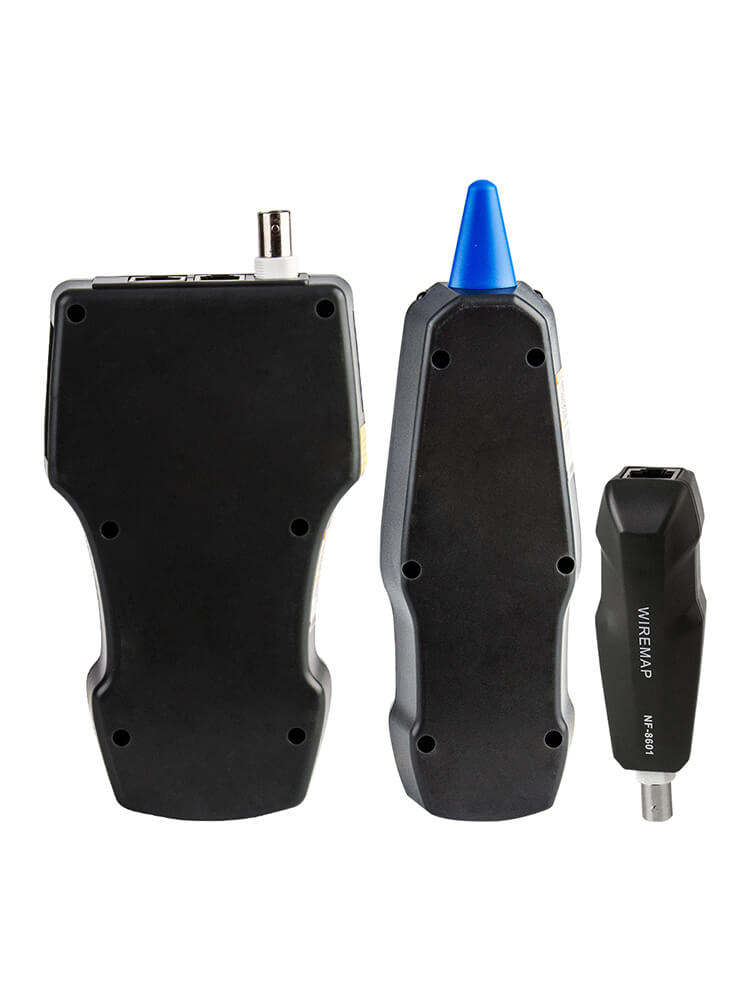

Noyafa NF-8601S TDR Cable Tracer Tester with PoE / Ping for RJ45, RJ11, BNC, Metal Cables

Features & Benefits:

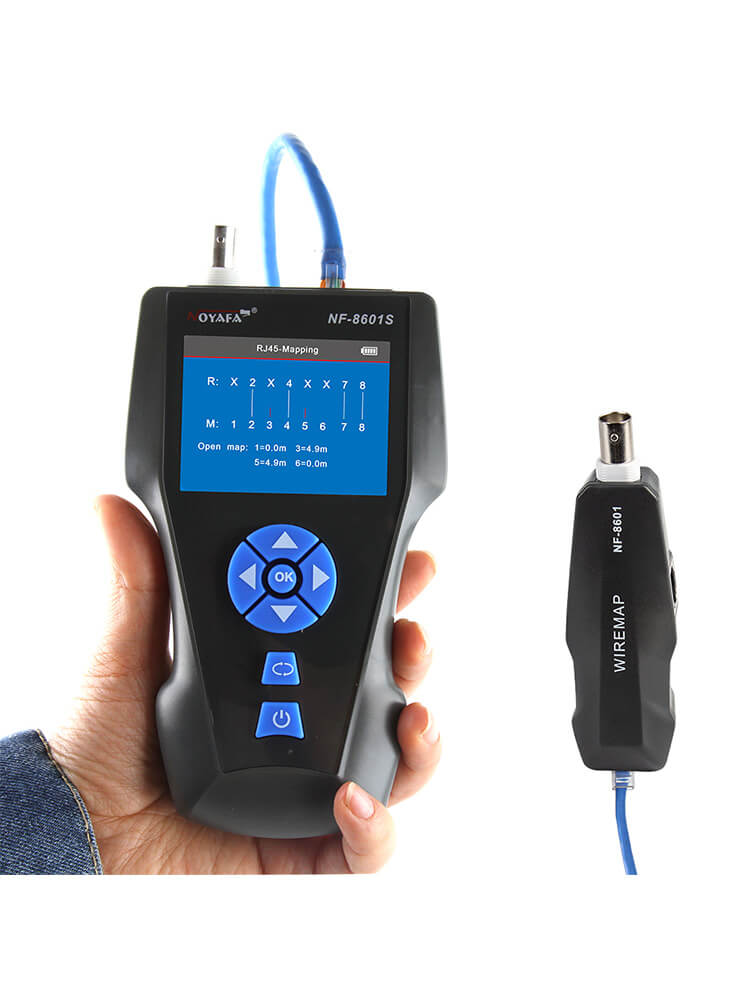

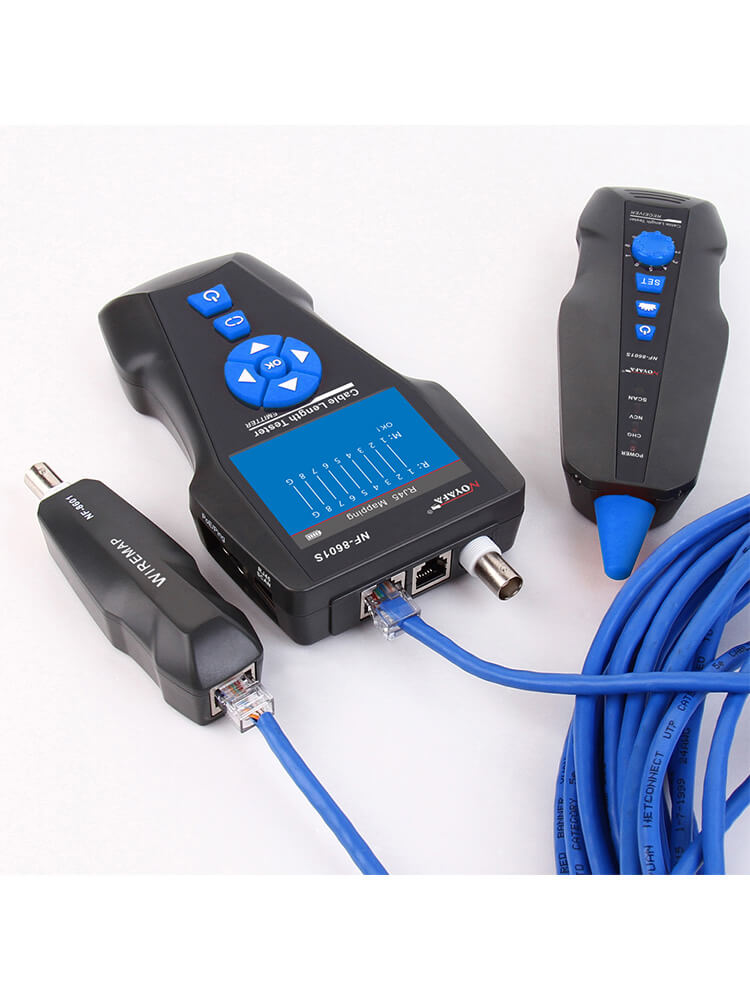

• CAT5/6/7 tester: Continuity testing for Coaxial cables, RJ45 network cables, and RJ11 telephone cables. Display wiring fault names directly like Open Circuit, Short Circuit, etc.

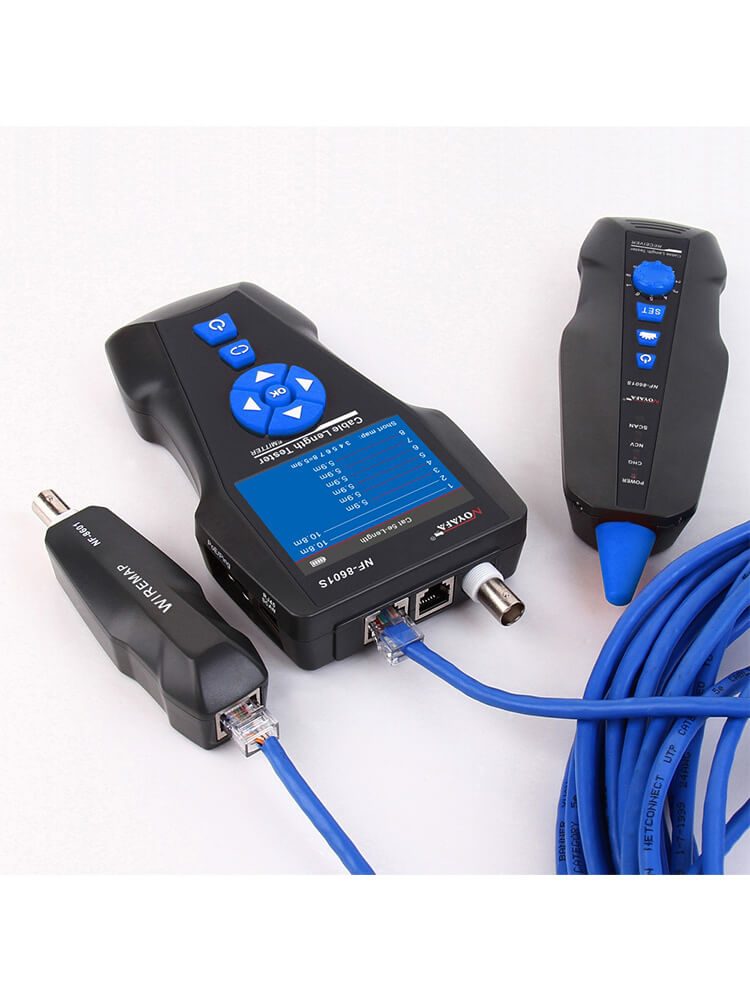

• TDR test: With TDR technology, 500m max (1640ft) length measurement for RJ11, RJ45, Coaxial, and power cables (only 2% error!). When faults exist, the NF-8601S TDR meter displays the distance to the fault.


• Ethernet cable tester: Identify the power over ethernet cables and detect the exact voltage. It tells the pins delivering DC powers and data.


• Network toner: Toner probe with complete AC interference rejection to trace ethernet cables. Three modes are available for fast and accurate cable tracing: high frequency / PoE switch / low frequency.


• Port blinking: Easy and quick locating ethernet ports on the server/switch/hub/router port by the generated flashing light. It is convenient for identifying a cable connected to the switch.


• Ping test: Network performance check and quality measurements. Examine the data packet and the minimum & maximum time to send and receive data.


• Non-Contact Voltage Tester: Toner probe with NCV detector (90-1000V). One tap to tell if electricity runs through an object without touching it.


• Extra accessories: 3.7V 1800mAh rechargeable lithium battery, 1GB TF card for data storage and export, adapters, and clamps to improve compatibility.


• Friendly Offer & Considerate UI: Compared to expensive Fluke and Klein TDR tools, NOYAFA offers a budget-friendly alternative. Measure and test ethernet with no steep learning curve and zero practice.
